Flexible thermoplastic capillary hose with 2mm internal diameter

Quadra DN2

Flexible thermoplastic capillary hose with 2mm internal diameter



  • Orange

  • Black

  • UL Approved

  • 10m

  • 50m

Choose your hose
Part no. Color Pack Description
0780C 50m Orange hose in 50m coil
Add to wish-list
0780BC 50m Black hose in 50m coil
Add to wish-list
0780K 10m Orange hose in 10m coil
Add to wish-list
0780BK 10m Black hose in 10m coil
Add to wish-list
0380C 50m Orange UL approved hose in 50m coil
Add to wish-list
0380BC 50m Black UL approved hose in 50m coil
Add to wish-list
0380K 10m Orange UL approved hose in 10m coil
Add to wish-list
0380BK 10m Black UL approved hose in 10m coil
Add to wish-list
Metric/Imperial
Technical Features
Hose Diameters
ID 2mm0.079in

OD 6.1mm0.240in

  mm inch
Bend radius 10 0.394
Hand Plier Crimping Diam. 7±0.1 0.275±0.0039
Electric Plier Crimping Diam. 7-0,2
7+0,1
0.275-0.0078
0.275+0.0039
  bar MPa Psi
WP 120 12.0 1740
BP 600 60 8700

  min max
WT -45°C +130°C -49°F +266°F
Permitted
Fluids

Type of gas Type of oil
HFO/HFC (R134a, R404A, R407A, R407B, R407C, R410A, R507, R32, R448A, R449A, R450A, R513A, R1234yf, R1234ze) polyol ester based
HCFC (R22) mineral oils
CO2 polyol ester based
Classification of QUADRA capillary hoses

Part no. Classification according to Directive 2014/68/UE
0780C / BC paragraph 3 article 4
0780K /BK
0380C / BC
0380K / BK

DN2 Fittings

The large fitting range available and the dedicated assembly tooling for the QUADRA hose allows the operator to assemble the machine, or carry out maintenance and to work quickly, flexibly and securely.



1/4 Straight female fitting – Conforms to UL requirements

Part number
Item
Copper gasket

XBA02C 50 pieces box
Add to wish-list
WBA02C 50 pieces box
Add to wish-list
KBA02C 10 pieces blister
Add to wish-list

1/4 Straight female fitting + valve opener

Part number
Item
Copper gasket

XBB02C 50 pieces box
Add to wish-list
WBB02C 50 pieces box
Add to wish-list
KBB02C 10 pieces blister
Add to wish-list

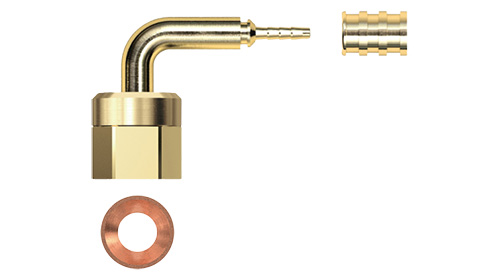

1/4 Female elbow 90° Fitting – Conforms to UL requirements

Part number
Item
Copper gasket

XCA02C 50 pieces box
Add to wish-list
WCA02C 50 pieces box
Add to wish-list
KCA02C 10 pieces blister
Add to wish-list

Elbow fitting 90°

Part number
Item
Copper gasket

WPD2C1 50 pieces box
Add to wish-list
KPD2C1 10 pieces blister
Add to wish-list

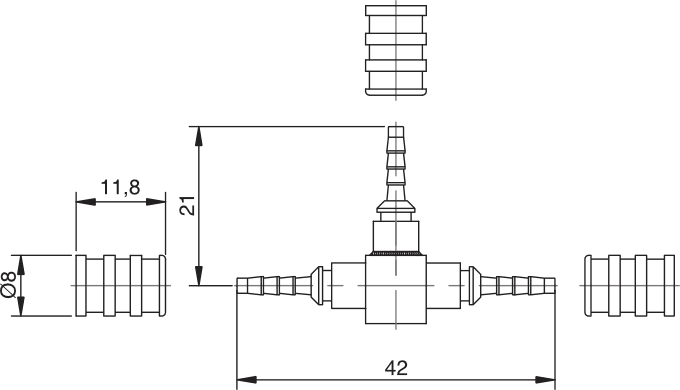

“T” Fitting

Part number
Item
Copper gasket

WPB0C1 50 pieces box
Add to wish-list
KPB0C1 10 pieces blister
Add to wish-list

“T” Fitting with one female 1/4 SAE

Part number
Item
Copper gasket

XPB0C2 50 pieces box
Add to wish-list
WPB0C2 50 pieces box
Add to wish-list
KPB0C2 10 pieces blister
Add to wish-list

“T” Fitting with one female 1/4 SAE

Part number
Item
Copper gasket

XPB2C4 50 pieces box
Add to wish-list
WPB2C4 50 pieces box
Add to wish-list
KPB2C4 10 pieces blister
Add to wish-list

“T” Fitting with 2 female 1/4 SAE at 180°

Part number
Item
Copper gasket

XPB2C3 50 pieces box
Add to wish-list
WPB2C3 50 pieces box
Add to wish-list
KPB2C3 10 pieces blister
Add to wish-list

“T” Fitting with 2 female 1/4 SAE at 90°

Part number
Item
Copper gasket

XPB2C7 50 pieces box
Add to wish-list
WPB2C7 50 pieces box
Add to wish-list
KPB2C7 10 pieces blister
Add to wish-list

Cross fitting

Part number
Item
Copper gasket

WPA2C1 50 pieces box
Add to wish-list
KPA2C1 10 pieces blister
Add to wish-list

1/4 SAE Straight male

Part number
Item
Copper gasket

WDN22C 50 pieces box
Add to wish-list
KDN22C 10 pieces blister
Add to wish-list

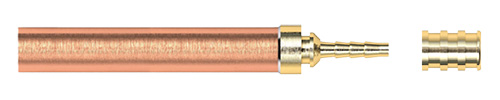

Copper Brazing Fitting (4 x 6 x 100 mm)

Part number
Item

WZE2C1 50 pieces box
Add to wish-list

DN2 Accessories

The assembly tooling for the QUADRA hose allows the operator to assemble the machine, or carry out maintenance and to work quickly, flexibly and securely, reducing to a minimum the need of brazing operations.



Pliers

Part number
Item
Pack

RXA007 Hand Pliers 1pcs
Add to wish-list
Part number
Item
Pack

RXA011 QUADRA electric plier bundle 1pcs
Add to wish-list
Content


Battery hydraulic crimping machine 45 kN

Battery Li-Ion 18V 1.5Ah

Battery charger

USB cable and Software (CD)

Set of dies DN2, DN4 and DN6

Case

Dimensions of the case: 450 x 360 x 140 mm
Total weight: 5,3 Kg
Part number
Item
Pack

RXA012 QUADRA electric plier full 1pcs
Add to wish-list
Content


Battery hydraulic crimping machine 45 kN

Battery Li-Ion 18V 1.5Ah

Battery charger

USB cable and Software (CD)

Set of dies DN2, DN4 and DN6

Case

Spare Li-Ion 18V 1.5Ah battery

DC bench power supply

Dimensions of the case: 450 x 360 x 140 mm
Total weight: 6,5 Kg

Cutter and Blades

Part number
Item
Pack

WXA004 Cutter 1pcs
Add to wish-list
Part number
Item
Pack

WXB004 Cutter Blades 2pcs
Add to wish-list

Valve Opener, Gasket and fitting plugs

Part number
Item
Pack

WTD2Z1 Removable valve Opener 50pcs blister
Add to wish-list
Part number
Item
Pack

WRP502 Copper Gasket 1/4” 50pcs blister
Add to wish-list
Part number
Item
Pack

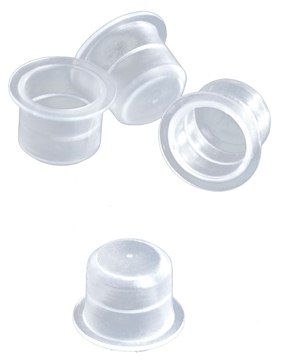

WRW912 QUADRA 1/4 fitting plugs 50pcs blister
Add to wish-list

QUADRA Case

Part number
Item
Pack

MR293 Empty case 1pcs
Add to wish-list
Part number
Item
Pack

W00005 Complete case 1pcs
Add to wish-list
Content


10 m. ref. 0780K

10 m. ref. 0780BK

1 ref. RXA007

1 ref. WXA004

1 ref. WXB004

20 ref. WBA02C

20 ref. WBB02C

10 ref. WCA02C

10 ref. WPB0C1

10 ref. WPB0C2

50 ref.WRP502

10 ref. WDN22C

50 ref. WTD2Z1

4 ref. WPA2C1

2 ref. WZE2C1

5 ref. XPB2C3

Free stand display rack

Part number
Item
Pack

W00006 QUADRA Display 1pcs
Add to wish-list
Content


40 pcs KBA02C

40 pcs KBB02C

40 pcs KCA02C

40 pcs KPB0C1

40 pcs KPB0C2

50 pcs WZE2C1

40 pcs KDN22C

20 pcs KPD2C1

4 pcs WXB004

2 pcs WXA004

2 pcs RXA007

100 pcs WRP502

100 pcs WTD2Z1

60 m 0780BK

60 m 0780K

A useful Floor Display unit holding an assortment of QUADRA products and accessories. A simple way to promote and support your business in your retail network.

Dimensions in cm:
width 65
depth 46
height 159
height with crowner 199

DN2 Assembled

Assembled hose in bundles of 50 pieces


  • Orange

  • Black

  • UL Approved


XXX is total length of QUADRA hose in cm (multiple lengths of 10 cm)

Part number, hose color and compliancy
1/4” Straight female + 1/4” Straight female

CKAXXX

CRUUS UL Approved

Add to wish-list

CKBXXX

CRUUS UL Approved

Add to wish-list

CAAXXX

Add to wish-list

CCBXXX

Add to wish-list
1/4” Straight female + 1/4” Straight female + Valve opener
1/4” Straight female + 1/4” Straight female + Valve opener

CCJXXX

Add to wish-list

CEQXXX

Add to wish-list
1/4” Straight female + 1/4” Elbow female
1/4” Straight female + 1/4” Elbow female

CKCXXX

CRUUS UL Approved

Add to wish-list

CKDXXX

CRUUS UL Approved

Add to wish-list

CACXXX

Add to wish-list

CCDXXX

Add to wish-list
1/4” Straight female + “T” with 2 female 1/4” at 180°
1/4” Straight female + “T” with 2 female 1/4” at 180°

CETXXX

Add to wish-list

CEUXXX

Add to wish-list
1/4” Straight female + “T” with 2 female 1/4” at 90°
1/4” Straight female + “T” with 2 female 1/4” at 90°

CEVXXX

Add to wish-list

CEWXXX

Add to wish-list
1/4” Straight female + Cross with 3 females
1/4” Straight female + Cross with 3 females

CEXXXX

Add to wish-list

CEYXXX

Add to wish-list
1/4” Straight female + 1/4” Male
1/4” Straight female + 1/4” Male

CERXXX

Add to wish-list

CESXXX

Add to wish-list
1/4” Straight female + copper brazing tube
1/4” Straight female + copper brazing tube

CEZXXX

Add to wish-list

CFAXXX

Add to wish-list
1/4” Straight female + 1/4” Straight female (all with valve opener)
1/4” Straight female + 1/4” Straight female (all with valve opener)

CABXXX

Add to wish-list

CCCXXX

Add to wish-list
1/4” Straight female (with valve opener) + 1/4” Elbow female
1/4” Straight female (with valve opener) + 1/4” Elbow female

CADXXX

Add to wish-list

CCEXXX

Add to wish-list
1/4” Straight female with valve opener + “T” with 2 females 1/4” at 180°
1/4” Straight female with valve opener + “T” with 2 females 1/4” at 180°

CFDXXX

Add to wish-list

CFEXXX

Add to wish-list

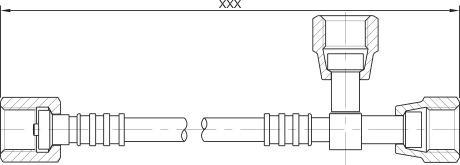

1/4” Straight female +with valve opener + “T” with 2 females 1/4” at 90°
1/4” Straight female +with valve opener + “T” with 2 females 1/4” at 90°

CFFXXX

Add to wish-list

CFGXXX

Add to wish-list
1/4” Straight female with valve opener + cross with 3 1/4” Female
1/4” Straight female with valve opener + cross with 3 1/4” Female

CFHXXX

Add to wish-list

CFIXXX

Add to wish-list
1/4” Straight female with valve opener + male 1/4
1/4” Straight female with valve opener + male 1/4

CFBXXX

Add to wish-list

CFCXXX

Add to wish-list
1/4” Straight female with valve opener + copper brazing tube
1/4” Straight female with valve opener + copper brazing tube

CFJXXX

Add to wish-list

CFKXXX

Add to wish-list
1/4” Elbow female + 1/4” Elbow female
1/4” Elbow female + 1/4” Elbow female

CKEXXX

CRUUS UL Approved

Add to wish-list

CKFXXX

CRUUS UL Approved

Add to wish-list

CAEXXX

Add to wish-list

CCFXXX

Add to wish-list
1/4” Elbow female 90° + “T” with 2 females 1/4” at 180°
1/4” Elbow female 90° + “T” with 2 females 1/4” at 180°

CFPXXX

Add to wish-list

CFQXXX

Add to wish-list
1/4” Elbow female 90° + “T” with 2 females 1/4” at 90°
1/4” Elbow female 90° + “T” with 2 females 1/4” at 90°

CFRXXX

Add to wish-list

CFSXXX

Add to wish-list
1/4” Elbow Female 90° + cross with 3 1/4” females
1/4” Elbow Female 90° + cross with 3 1/4” females

CFTXXX

Add to wish-list

CFUXXX

Add to wish-list
Elbow 1/4” female 90° + 1/4” Male
Elbow 1/4” female 90° + 1/4” Male

CFNXXX

Add to wish-list

CF0XXX

Add to wish-list
1/4” Elbow female 90° + copper brazing tube
Elbow 1/4” female 90° + 1/4” Male

CFVXXX

Add to wish-list

CFWXXX

Add to wish-list
1/4” “T” with 2 femals at 180° + 1/4” “T” with 2 femals at 180°
1/4” “T” with 2 femals at 180° + 1/4” “T” with 2 femals at 180°

CGHXXX

Add to wish-list

CGIXXX

Add to wish-list
1/4” “T” with 2 femals at 180° + 1/4” with 2 femals at 90°
1/4” “T” with 2 femals at 180° + 1/4” with 2 femals at 90°

CGJXXX

Add to wish-list

CGKXXX

Add to wish-list
1/4” “T” with 2 females at 180° + 1/4” 3 Females cross
1/4” “T” with 2 females at 180° + 1/4” 3 Females cross

CGLXXX

Add to wish-list

CGMXXX

Add to wish-list
1/4” “T” females at 180° + “T” 1/4” with 2 females at 180°
1/4” “T” females at 180° + “T” 1/4” with 2 females at 180°

CFZXXX

Add to wish-list

CGAXXX

Add to wish-list
1/4” “T” females at 180° + copper brazing tube
1/4” “T” females at 180° + copper brazing tube

CGNXXX

Add to wish-list

CGOXXX

Add to wish-list
1/4” “T” females at 90° + 1/4” “T” females at 90°
1/4” “T” females at 90° + 1/4” “T” females at 90°

CGPXXX

Add to wish-list

CGQXXX

Add to wish-list
1/4” “T” females at 90° + Cross with 3 1/4”females
1/4” “T” females at 90° + Cross with 3 1/4”females

CGRXXX

Add to wish-list

CGSXXX

Add to wish-list

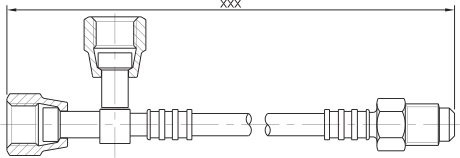

1/4” Male + 1/4” “T” females at 90°
1/4” Male + 1/4” “T” females at 90°

CGBXXX

Add to wish-list

CGCXXX

Add to wish-list
1/4” “T” females at 90°+ Copper brazing tube
1/4” “T” females at 90°+ Copper brazing tube

CGTXXX



Add to wish-list

CGUXXX

Add to wish-list
Cross with 3 1/4”females + Cross with 3 1/4”females
Cross with 3 1/4”females + Cross with 3 1/4”females

CGVXXX

Add to wish-list

CGWXXX

Add to wish-list
Cross with 3 1/4”females + 1/4” Male
Cross with 3 1/4”females + Cross with 3 1/4”females

CGDXXX

Add to wish-list

CGEXXX

Add to wish-list
Cross with 3 1/4” females + copper brazing tube
Cross with 3 1/4”females + copper brazing tube

CGXXXX

Add to wish-list

CGYXXX

Add to wish-list
1/4” Male + 1/4” Male
1/4” Male + 1/4” Male

CFXXXX

Add to wish-list

CFYXXX

Add to wish-list
1/4” Male + Copper Brazing Tube
1/4” Male + Copper Brazing Tube

CGFXXX

Add to wish-list

CGGXXX

Add to wish-list
Copper Brazing Tube + Copper Brazing Tube
Copper Brazing Tube + Copper Brazing Tube

CGZXXX

Add to wish-list

CHAXXX

Add to wish-list

Assembling instructions for crimping fittings for QUADRA DN2 capillary hose

1

step 1

Cut the QUADRA capillary hose to the required lenght using the special WXA004 cutter
2

step 2

Slip the nut over the hose (depending on ftting type). Ensure that the threaded side is pointing towards the end of the hose that needs assembling.
3

step 3

When pushing the ferrule over the hose end, ensure its correct positioning, in line with the hose end. Push the insert into the hose end you want to assemble.
4

step 4

Pay attention not to move the components already fItted and slide the ferrule over the hose towards the insert positioning it in line with the insert.
5

step 5

Crimp the ferrule with our hand pliers type RXA007, up to the limit stop of the pliers: once the optimal deformation has been achieved the pliers will open automatically.
5a

step 5

Crimp the ferrule using our pliers cod.RXA005: open the punches using the special lever, then put the ferrule properly between the pinches. The deformation is achieved when the pliers release and the lever idles.
6

step 6

The assembling is fnished and the eventual nut can easily slide over the ferrule: check the correct positioning of thecomponents and make sure the entire surface of theferrule has been swaged.
Attention
Note!
Once the hose assembly is connected to the machine, do not move or rotate it, otherwise you risk loosening the nut or damaging the fitting by compromising its tightness. In case you have to modify the orientation of the coupling, unscrew the nut, position the hose assembly, then tighten the nut again respecting the torque value of 16 ÷ 18 N·m max 20 N·m.

Inner tube

Thermoplastic polymer

Reinforcement

Polyester braid of high tensile strength with high modulus

Cover

Thermoplastic polymer – orange or black – white ink-jet branding on black hose, black ink-jet printing on orange hose

Applications

Connection of pressure gauges, pressure switches and pressure test points

Features

Light – Flexible – Compact – Vibration absorber

Temperature range

-45 °C to +130 °C (-49 °F to +266 °F)

DESCRIPTION

The QUADRA DN2 (internal diameter 2mm), flexible thermoplastic capillary hose, in two colors orange and black, represent the most efficient and developed system for the connection of pressure gauges, pressure switches and pressure test points. Transfer Oil advice the standardization of use of the QUADRA DN2 hose, choosing the orange color for the high pressure circuits and the black color for the low pressure circuits, so identifying in an unambiguous way the two parts of the circuit. This reduces the possibilities of misconnections of the two pressure lines of the machine during production and maintenance. The extraordinary number of QUADRA DN2 fittings covers all possible types of installations, making the need of copper rigid tubes and capillaries unnecessary. QUADRA DN2 hoses and fittings can be easily assembled using the specific QUADRA hand pliers RXA007.

Flexible thermoplastic capillary hose dedicated to the connection of pressure gauges, pressure switches and pressure test points in Air Conditioning and refrigeration systems. In contrast to the brazing or bending operations that are necessary for rigid copper tubing, installation and connection of QUADRA® flexible hose does not need any particular specialization and so making the connecting operation within anyone’s ability.



PERMEABILITY

The specification EN 1736:2008, among other various aspects, regulates the requirements to qualify the permeability rate of non-metallic tubes used in air conditioning and refrigerating systems, including heat pumps. The permeability value provides an indication of the maximum leakage tested at constant conditions of use. Permeability is measured in grams, permeated from a square meter of the internal surface of the hose during one year (g/m2 per year). The real permeability value must therefore be measured considering the actual working time and temperatures to which the hose is subjected.



UV RESISTANCE

The test was made using a specific equipment called “Solar Box ERICHSEN mod. S1D (Xenon Lamp)”. The duration of the test has been 200 hours in total. The evaluation is based on the observation of the grey tones of the samples: the samples should not change their grey scale. The evaluation is expressed on a scale from 1 to 5, where 1 is very bad and 5 is excellent. The orange sample achieved rating 4 (good). The black sample achieved rating 5 (excellent). Hence it follows that for all applications where the hoses are exposed to direct and frequent sunlight, black Quadra hoses are to be preferred.

GOMAX
a brand of Transfer Oil S.p.A.

Via Sacca, 64 - 43052
Colorno, Italy
T +39 0521 3139
info@transferoil.com

Follow us on Linkedin
Follow us on YouTube
