Flexible thermoplastic capillary hose with 4mm internal diameter

Quadra DN4

Flexible thermoplastic capillary hose with 4mm internal diameter



  • Orange

  • Black

  • UL Approved

  • 10m

  • 50m

Choose your hose
Part no. Color Pack Description
0789C 50m Orange UL approved hose in 50m coil
Add to wish-list
0789BC 50m Black UL approved hose in 50m coil
Add to wish-list
0789K 10m Orange UL approved hose in 10m coil
Add to wish-list
0789BK 10m Black UL approved hose in 10m coil
Add to wish-list
Metric/Imperial
Technical Features
Hose Diameters
ID 4mm0.157in

OD 8.3mm0.327in

  mm inch
Bend radius 25 0.984
Hydraulic Plier Crimping Diam. 9,8 -0,1
9,8 +0,2
0.386 -0.0039
0.386 +0.0078
Electric Plier Crimping Diam. 9,8 -0,1
9,8 +0,2
0.386 -0.0039
0.386 +0.0078
  bar MPa Psi
WP 120 12.0 1740
BP 600 60 8700

  min max
WT -45°C +130°C -49°F +266°F
Permitted
Fluids

Type of gas Type of oil
HFO/HFC (R134a, R404A, R407A, R407B, R407C, R410A, R507, R32, R448A, R449A, R450A, R513A, R1234yf, R1234ze) polyol ester based
HCFC (R22) mineral oils
CO2 polyol ester based
Classification of QUADRA capillary hoses

Part no. Classification according to Directive 2014/68/UE
0789C paragraph 3 article 3
0789BC
0789K
0789BK

DN4 Fittings

The large fitting range available and the dedicated assembly tooling for the QUADRA hose allows the operator to assemble the machine, or carry out maintenance and to work quickly, flexibly and securely.



1/4 SAE Straight female fitting – Conforms to UL requirements

Part number
Item
Copper gasket

XBA02M 50 pieces box
Add to wish-list
WBA02M 50 pieces box
Add to wish-list
KBA02M 10 pieces blister
Add to wish-list
UL

1/4 SAE Straight female fitting + Valve Opener

Part number
Item
Copper gasket

XBB22M 50 pieces box
Add to wish-list
WBB22M 50 pieces box
Add to wish-list
KBB22M 10 pieces blister
Add to wish-list

3/8 SAE Straight female fitting

Part number
Item
Copper gasket

XBA04M 50 pieces box
Add to wish-list
WBA04M 50 pieces box
Add to wish-list
KBA04M 10 pieces blister
Add to wish-list

1/4 SAE Elbow Female 90° – Conforms to UL requirements

Part number
Item
Copper gasket

XCA02M 50 pieces box
Add to wish-list
WCA02M 50 pieces box
Add to wish-list
KCA02M 10 pieces blister
Add to wish-list
UL

3/8 SAE Elbow Female 90° – Conforms to UL requirements

Part number
Item
Copper gasket

XCA04M 50 pieces box
Add to wish-list
WCA04M 50 pieces box
Add to wish-list
KCA04M 10 pieces blister
Add to wish-list
UL

“T” fitting

Part number
Item
Copper gasket

WPB0M1 50 pieces box
Add to wish-list
KPB0M1 10 pieces blister
Add to wish-list

“T” Fitting With One Female 1/4 SAE

Part number
Item
Copper gasket

XPB2M2 50 pieces box
Add to wish-list
WPB2M2 50 pieces box
Add to wish-list
KPB2M2 10 pieces blister
Add to wish-list

“T” Fitting With One Female 1/4 SAE

Part number
Item
Copper gasket

XPB2M4 50 pieces box
Add to wish-list
WPB2M4 50 pieces box
Add to wish-list
KPB2M4 10 pieces blister
Add to wish-list

1/4 SAE Straight Male

Part number
Item
Copper gasket

WDN22M 50 pieces box
Add to wish-list
KDN22M 10 pieces blister
Add to wish-list

Copper brazing fitting (4x6x100mm)

Part number
Item

WZE2M1 50 pieces box
Add to wish-list

DN4 Reusable Fittings

QUADRA DN4 can be easily connected to the machine through reusable fittings, carrying out maintenance and working quickly and securely.

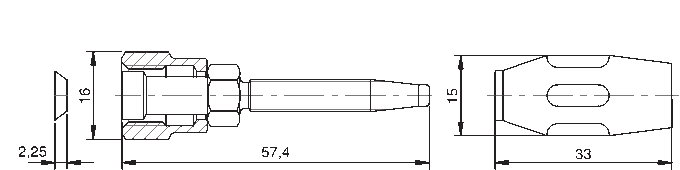

1/4 SAE Straight female fitting

Part number
Item
Copper gasket

XIA02M 50 pieces box
Add to wish-list
WIA02M 50 pieces box
Add to wish-list
KIA02M 10 pieces blister
Add to wish-list

1/4 SAE Elbow female 90° fitting

Part number
Item
Copper gasket

XJA02M 50 pieces box
Add to wish-list
WJA02M 50 pieces box
Add to wish-list
KJA02M 10 pieces blister
Add to wish-list

Assembly instructions for reusable fittings

1

step 1

Cut QUADRA DN4 capillary hose to the required length using our cutter for capillary hoses type WXA004.
2

step 2

Push the ferrule over the hose end you want to assemble. To make the operation easier we advise that you lubricate the components with refrigeration oil.
3

step 3

Screw counter clockwise, by hand, the first turns of the thread of the ferrule. A suitable wrench screw counter clockwise until the ferrule is in line with the hose.
4

step 4

Place the insert into the hose end you want to assemble. To make the operation easier we advise that you lubricate the components with refrigeration oil.
5

step 5

Screw clockwise, by hand, the first turns of the thread of the insert into the ferrule previously fitted on the hose. Screw clockwise the fitting into the ferrule until they are in line with each other by using a wrench and a counter wrench.
6

step 6

After checking the correct positioning of the components, the assembling is finished.

DN4 Accessories

The assembly tooling for the QUADRA hose allows the operator to assemble the machine, or carry out maintenance and to work quickly, flexibly and securely, reducing to a minimum the need of brazing operations.



Pliers

Part number
Item
Pack

RXA005 Hydraulic Pliers 1pcs
Add to wish-list
Part number
Item
Pack

RXA011 QUADRA electric plier bundle 1pcs
Add to wish-list
Content


Battery hydraulic crimping machine 45 kN

Battery Li-Ion 18V 1.5Ah

Battery charger

USB cable and Software (CD)

Set of dies DN2, DN4 and DN6

Case

Dimensions of the case: 450 x 360 x 140 mm
Total weight: 5,3 Kg
Part number
Item
Pack

RXA012 QUADRA electric plier full 1pcs
Add to wish-list
Content


Battery hydraulic crimping machine 45 kN

Battery Li-Ion 18V 1.5Ah

Battery charger

USB cable and Software (CD)

Set of dies DN2, DN4 and DN6

Case

Spare Li-Ion 18V 1.5Ah battery

DC bench power supply

Dimensions of the case: 450 x 360 x 140 mm
Total weight: 6,5 Kg

Cutter and Blades

Part number
Item
Pack

WXA004 Cutter 1pcs
Add to wish-list
Part number
Item
Pack

WXB004 Cutter Blades 2pcs
Add to wish-list

Valve Opener, Gasket and nut caps

Part number
Item
Pack

WTD2Z1 Removable valve Opener 50pcs blister
Add to wish-list
Part number
Item
Pack

WRP502 Copper Gasket 1/4” 50pcs blister
Add to wish-list
Part number
Item
Pack

WRP504 Copper Gasket 3/8” 50pcs blister
Add to wish-list
Part number
Item
Pack

WRW912 QUADRA 1/4 fitting plugs 50pcs blister
Add to wish-list
Part number
Item
Pack

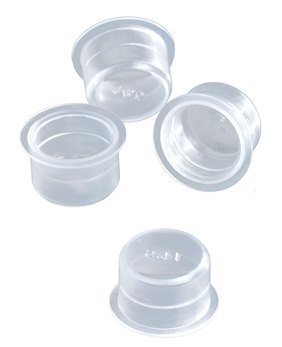

WRW914 QUADRA 3/8 fitting plugs 50pcs blister
Add to wish-list

QUADRA Case

Part number
Item
Pack

MR293 Empty case 1pcs
Add to wish-list

Free stand display rack

Part number
Item
Pack

W00007 QUADRA Display 1pcs
Add to wish-list
Content


20 pcs KBA02C

20 pcs KBB02C

20 pcs KCA02C

20 pcs KPB0C1

20 pcs KPB0C2

20 pcs KDN22C

20 pcs KPD2C1

40 pcs KBA02M

30 pcs KCA02M

20 pcs KBA04M

20 pcs KCA04M

20 pcs KPB0M1

20 pcs KDN22M

20 pcs KPB2M2

4 pcs WXB004

2 pcs WXA004

2 pcs RXA007

100 pcs WRP502

100 pcs WTD2Z1

20 m 0780BK

20 m 0780K

20 m 0789BK

20 m 0789K

A useful Floor Display unit holding an assortment of QUADRA products and accessories. A simple way to promote and support your business in your retail network.

Dimensions in cm:
width 65
depth 46
height 159
height with crowner 199

DN4 Assembled

Assembled hose in bundles of 50 pieces

  • Orange

  • Black

  • UL Approved

Available colours
Part number, hose color and compliancy
Straight female 1/4 + Straight female 1/4
Straight female 1/4 + Straight female 1/4

CAFXXX

CRUUS UL Approved

Add to wish-list

CCGXXX

CRUUS UL Approved

Add to wish-list
Straight female 1/4 + Straight female 1/4 + Valve Opener
Straight female 1/4 + Straight female 1/4 + Valve Opener

CHVXXX

Add to wish-list

CHWXXX

Add to wish-list
Straight female 1/4 + Straight female 3/8
Straight female 1/4 + Straight female 3/8

CCMXXX

Add to wish-list

CCNXXX

Add to wish-list
Straight female 1/4 + Elbow female 90° 1/4
Straight female 1/4 + Elbow female 90° 1/4

CAGXXX

CRUUS UL Approved

Add to wish-list

CCHXXX

CRUUS UL Approved

Add to wish-list
Straight female 1/4 + Elbow female 90° 3/8
Straight female 1/4 + Elbow female 90° 3/8

CDSXXX

CRUUS UL Approved

Add to wish-list

CDWXXX

CRUUS UL Approved

Add to wish-list
Straight Female 1/4 + Male 1/4
Straight Female 1/4 + Male 1/4

CIRXXX

Add to wish-list

CISXXX

Add to wish-list
Straight female 1/4 + Copper brazing tube
Straight female 1/4 + Copper brazing tube

CHBXXX

Add to wish-list

CHCXXX

Add to wish-list
Straight Female 1/4 + Straight Female 1/4 (all with Valve Opener)
Straight Female 1/4 + Straight Female 1/4 (all with Valve Opener)

CHZXXX

Add to wish-list

CIAXXX

Add to wish-list
Straight Female 1/4 (Valve Opener)+ 3/8 Straight Female
Straight Female 1/4 (Valve Opener)+ 3/8 Straight Female

CIFXXX

Add to wish-list

CIGXXX

Add to wish-list
Straight Female 1/4 (Valve Opener)+ Elbow Female 1/4
Straight Female 1/4 (Valve Opener)+ Elbow Female 1/4

CIBXXX

Add to wish-list

CICXXX

Add to wish-list
Straight Female 1/4 (Valve Opener)+ Elbow Female 3/8
Straight Female 1/4 (Valve Opener)+ Elbow Female 3/8

CIDXXX

Add to wish-list

CIEXXX

Add to wish-list
Straight Female 1/4 (Valve Opener)+ Male 1/4
Straight Female 1/4 (Valve Opener)+ Male 1/4

CHXXXX

Add to wish-list

CHYXXX

Add to wish-list
Straight Female 1/4 (Valve Opener)+ Copper Brazing Tube
Straight Female 1/4 (Valve Opener)+ Copper Brazing Tube

CIHXXX

Add to wish-list

CIIXXX

Add to wish-list
Straight Female 3/8 + Straight Female 3/8
Straight Female 3/8 + Straight Female 3/8

CCKXXX

Add to wish-list

CCLXXX

Add to wish-list
Elbow Female 1/4 + Straight Female 3/8
Elbow Female 1/4 + Straight Female 3/8

CCPXXX

Add to wish-list

CCQXXX

Add to wish-list
Elbow Female 90° 1/4 + Elbow Female 90° 1/4
Elbow Female 90° 1/4 + Elbow Female 90° 1/4

CAHXXX

CRUUS UL Approved

Add to wish-list

CCIXXX

CRUUS UL Approved

Add to wish-list
Elbow female 90° 1/4 + Elbow Female 90° 3/8
Elbow female 90° 1/4 + Elbow Female 90° 3/8

CDTXXX

CRUUS UL Approved

Add to wish-list

CDXXXX

CRUUS UL Approved

Add to wish-list
Elbow female 90° 1/4 + Elbow Female 90° 3/8
Elbow female 90° 1/4 + Elbow Female 90° 3/8

CIJXXX

Add to wish-list

CIKXXX

Add to wish-list
Elbow female 90° 1/4 + Copper brazing tube
Elbow female 90° 1/4 + Copper brazing tube

CHFXXX

Add to wish-list

CHGXXX

Add to wish-list
Straight female 3/8 +Elbow female 90° 3/8
Straight female 3/8 +Elbow female 90° 3/8

CDRXXX

Add to wish-list

CDVXXX

Add to wish-list
Staringht female 3/8 + Copper Brazing Tube
Staringht female 3/8 + Copper Brazing Tube

CHDXXX

Add to wish-list

CHEXXX

Add to wish-list
Elbow female 90° 3/8 + Elbow female 90° 3/8
Elbow female 90° 3/8 + Elbow female 90° 3/8

CDUXXX

CRUUS UL Approved

Add to wish-list

CDYXXX

CRUUS UL Approved

Add to wish-list
Elbow Female 90° 3/8 + Male 1/4
Elbow Female 90° 3/8 + Male 1/4

CILXXX

Add to wish-list

CIMXXX

Add to wish-list
Elbow Female 90° 3/8 + Copper Brazing Tube
Elbow Female 90° 3/8 + Copper Brazing Tube

CHHXXX

Add to wish-list

CHIXXX

Add to wish-list
Male 1/4 + male 1/4
Male 1/4 + male 1/4

CINXXX

Add to wish-list

CIOXXX

Add to wish-list
Male 1/4 + Copper brazing tube
Male 1/4 + Copper brazing tube

CIPXXX

Add to wish-list

CIQXXX

Add to wish-list
Copper brazing tube + Copper brazing tube
Copper brazing tube + Copper brazing tube

CHJXXX

Add to wish-list

CHKXXX

Add to wish-list

Assembling instructions for crimping fittings for QUADRA DN4 capillary hose

1

step 1

Cut the QUADRA capillary hose to the required lenght using the special WXA004 cutter
2

step 2

Slip the nut over the hose (depending on ftting type). Ensure that the threaded side is pointing towards the end of the hose that needs assembling.
3

step 3

When pushing the ferrule over the hose end, ensure its correct positioning, in line with the hose end. Push the insert into the hose end you want to assemble.
4

step 4

Pay attention not to move the components already fItted and slide the ferrule over the hose towards the insert positioning it in line with the insert.
5

step 5

Crimp the ferrule with our hand pliers type RXA007, up to the limit stop of the pliers: once the optimal deformation has been achieved the pliers will open automatically.
5a

step 5

Crimp the ferrule using our pliers cod.RXA005: open the punches using the special lever, then put the ferrule properly between the pinches. The deformation is achieved when the pliers release and the lever idles.
6

step 6

The assembling is fnished and the eventual nut can easily slide over the ferrule: check the correct positioning of thecomponents and make sure the entire surface of theferrule has been swaged.
Attention
Note!
Once the hose assembly is connected to the machine, do not move or rotate it, otherwise you risk loosening the nut or damaging the fitting by compromising its tightness. In case you have to modify the orientation of the coupling, unscrew the nut, position the hose assembly, then tighten the nut again respecting the torque value of 16 ÷ 18 N·m max 20 N·m.
Note!
Once the hose assembly is connected to the machine, do not move or rotate it, otherwise you risk loosening the nut or damaging the fitting by compromising its tightness. In case you have to modify the orientation of the coupling, unscrew the nut, position the hose assembly, then tighten the nut again.
Respect the nut torque value:
  • Torque wrench 14 7/16”-20 UNF for 1/4” SAE connections | 16 ÷ 18 N·m. Do not exceed 20 N·m
  • Torque wrench 22 5/8”-18 UNF for 3/8” SAE connections | 30 ÷ 32 N·m. Do not exceed 34 N·m

Inner tube

Thermoplastic polymer

Reinforcement

Polyester braid of high tensile strength with high modulus

Cover

Thermoplastic polymer – orange or black – white ink-jet branding on black hose, black ink-jet printing on orange hose

Applications

Connection of pressure gauges, pressure switches and pressure test points

Features

Light – Flexible – Compact – Vibration absorber

Temperature range

-45 °C to +130 °C (-49 °F to +266 °F)

DESCRIPTION

The QUADRA DN4 flexible thermoplastic capillary hose, in two colors orange and black, are the ideal solution for equalizing and oil return lines. The QUADRA DN4 hoses have an internal diameter of 4 mm and therefore they can substitute copper rigid tubing of OD 6 mm or 1/4”. The QUADRA DN4 hoses can be easily assembled with suitable fittings and crimped using the specific hydraulic crimper RXA005, or the all new ELECTRIC PLIER RXA010, otherwise a possible alternative is to use special reusable fittings where there are installations where special crimping tools are not available. The QUADRA DN4 hose can also be used, at the choice of the user, also for connection to the pressure gauges, pressure switches and test points as with QUADRA DN2.

Flexible thermoplastic capillary hose dedicated to the connection of pressure gauges, pressure switches and pressure test points in Air Conditioning and refrigeration systems. In contrast to the brazing or bending operations that are necessary for rigid copper tubing, installation and connection of QUADRA® flexible hose does not need any particular specialization and so making the connecting operation within anyone’s ability.



PERMEABILITY

The specification EN 1736:2008, among other various aspects, regulates the requirements to qualify the permeability rate of non-metallic tubes used in air conditioning and refrigerating systems, including heat pumps.
The permeability value provides an indication of the maximum leakage tested at constant conditions of use.
Permeability is measured in grams, permeated from a square meter of the internal surface of the hose during one year (g/m2 per year). The real permeability value must therefore be measured considering the actual working time and temperatures to which the hose is subjected.



UV RESISTANCE

The test was made using a specific equipment called “Solar Box ERICHSEN mod. S1D (Xenon Lamp)”. The duration of the test has been 200 hours in total. The evaluation is based on the observation of the grey tones of the samples: the samples should not change their grey scale.
The evaluation is expressed on a scale from 1 to 5, where 1 is very bad and 5 is excellent. The orange sample achieved rating 4 (good). The black sample achieved rating 5 (excellent). Hence it follows that for all applications where the hoses are exposed to direct and frequent sunlight, black Quadra hoses are to be preferred.
